Semi-automatic segmentation by propagation

Computational anatomy aims to develop computer processing methods to enrich diagnosis by extracting objective and clinically useful information from medical images. The deployment of such methods remains limited for the exploration of soft tissue organs, especially for the study of pelvic floor disorders and neuromuscular diseases via magnetic resonance imaging (MRI). In these domains, the segmentation step is essential to allow the characterization of physiological alterations occurring within the organs of interest. The high phenotypic variability in these pathologies has so far limited the development of robust automatic segmentation methods, limiting clinical research on large populations. To overcome this challenge, the main contribution of my thesis was the development of a supervised segmentation approach based on diffeomorphic image registration propagation methods. The objective of this approach was to simplify the segmentation of image series presenting a continuity of information between successive images, whether they are time series or three-dimensional images.

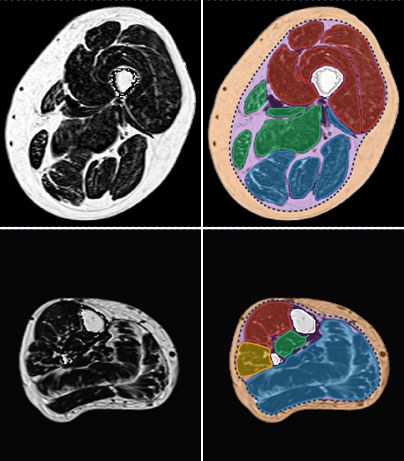

Examples of individual muscle segmentation on a medial axial section of a thigh (top) and leg (bottom).

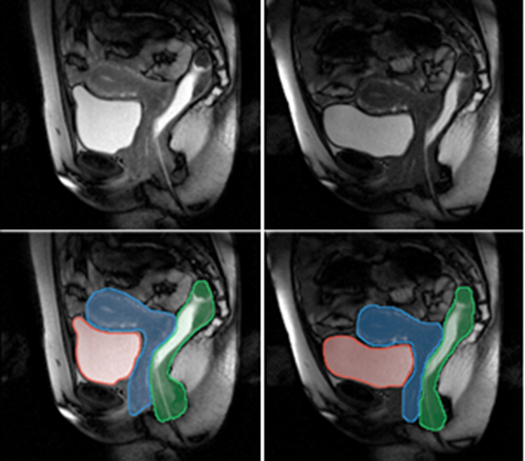

Examples of segmentation of the main pelvic organs at the beginning (left) and end (right) of a push-out exercise.

The method we have proposed exploits the redundancy of information contained between each successive slice of the image series acquired in our application contexts. Whether it is temporal image series for the pelvis or 3D spatial image series for the lower limbs, our data present a strong continuity from one slice to another. Thus, we proposed a semi-automatic method requiring only minimal manual segmentations from a user as a priori knowledge on the dataset in order to propagate the information contained in this manual input to the whole dataset. More concretely, since our image series are composed of several successive 2D slices, the objective was to manually provide segmentations of the regions of interest on a limited number of slices in order to propagate these segmentations to all other slices of the image series. Contrary to atlas-based or learning-based methods requiring the prior complete segmentation of a large database of appropriate images (not necessarily available), our process allows any user to obtain the direct segmentation of a series of images by limiting the time dedicated to manual segmentation. Please refer to Ogier et al. 2017 for the complete algorithm and parametric details of our proposed propagation method.

Axial views and 3D modeling of the six manually segmented slices used as propagation initialization (left). Axial views of five automatically segmented intermediate slices and 3D modeling of the automatically propagated segmentation over the entire region of interest (right). In this example, manuals segmentations of only 6 axial slices are automatically propagated on the 154 remaining slices.

By considerably reducing the manual involvement of an operator (about 80%) and by providing a robust and accurate result, this method has been validated for the segmentation of skeletal muscles as well as the bladder in pathological contexts. Our method is intended to be applicable to the segmentation of any soft tissue. Therefore, it has also been used for segmentation of epicardial muscle and fat tissue on cardiac cine MRI sequences.

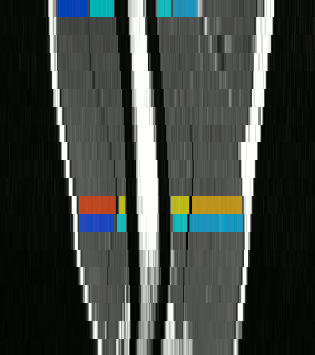

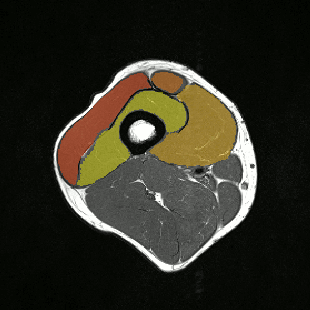

Semi-automatic segmentation by propagation of the four individual muscles of the *quadricep femoris* on a 3D T1W sequence of the thigh.. Axial (left) and sagittal (right) views.

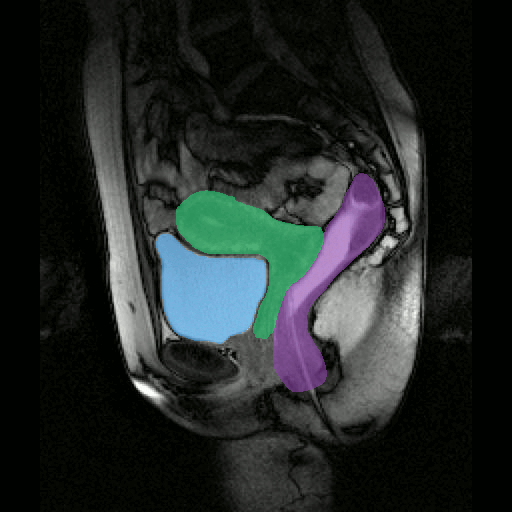

Semi-automatic segmentation of the major pelvic organs on a 2D dynamic MRI sequence.

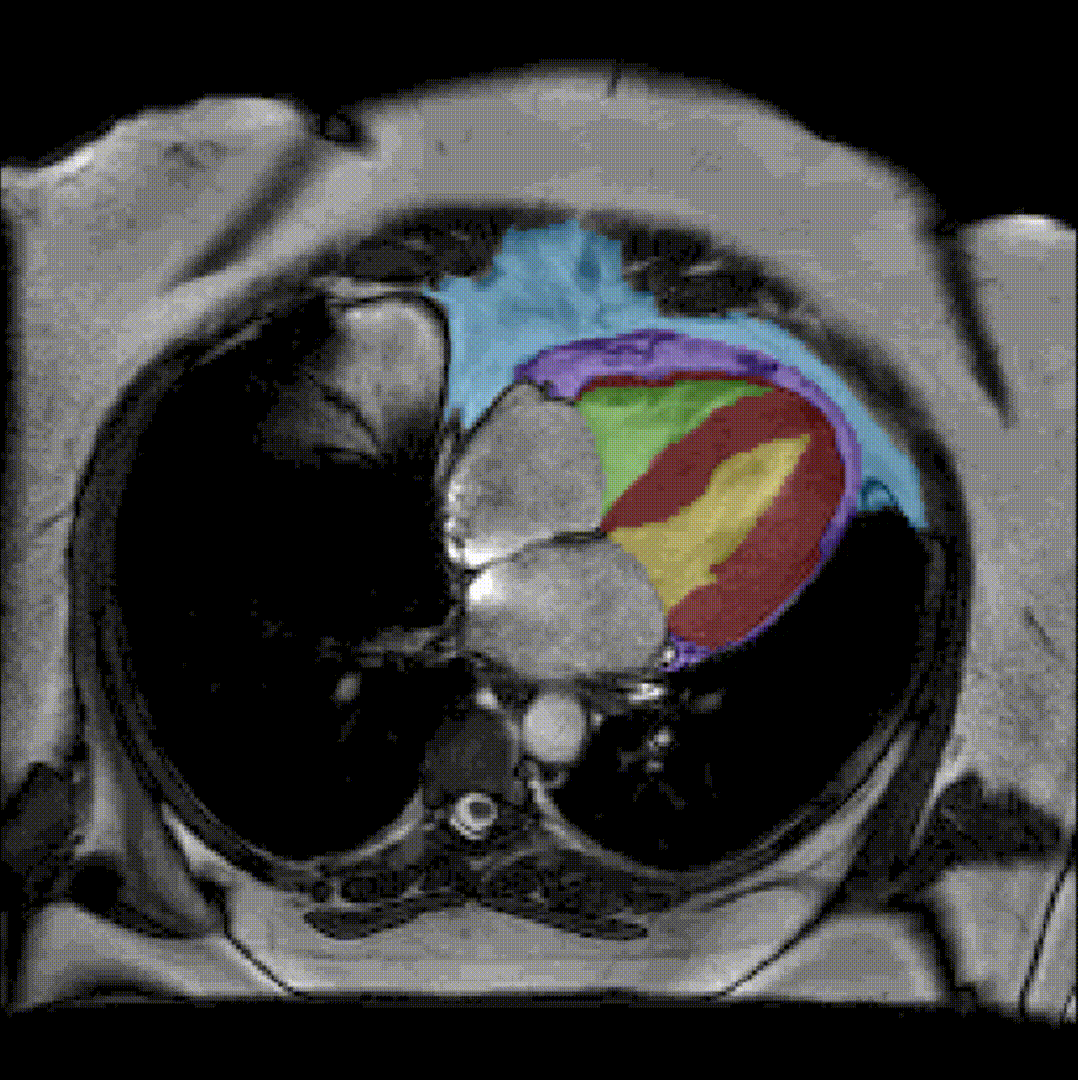

Semi-automatic segmentation of epicardial muscle and fat tissue on a cardiac cine MRI sequence.

To further facilitate the study of neuromuscular diseases, our segmentation method has also been extended for the longitudinal follow-up of patients.

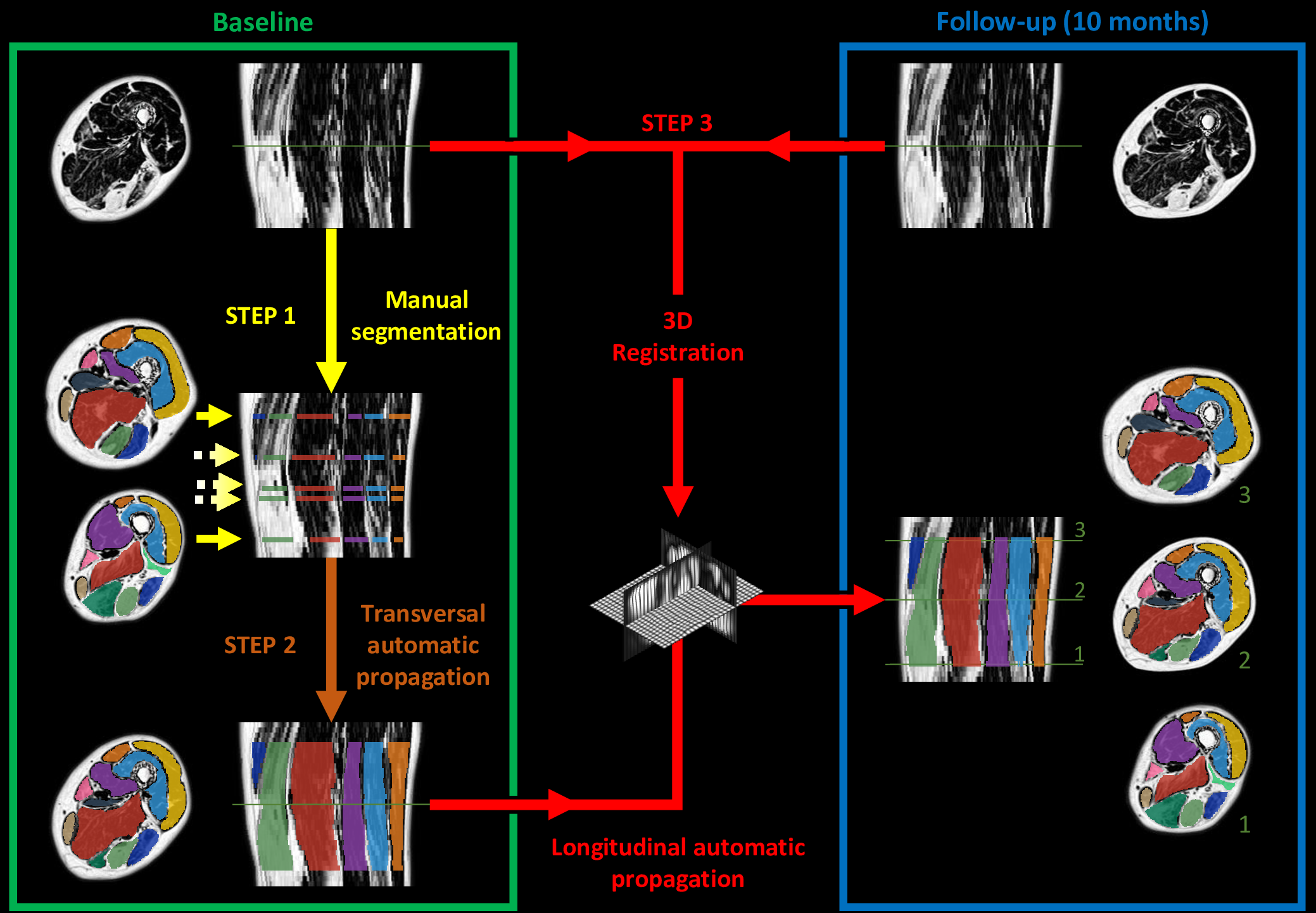

Schematic overview of the semi‐automated segmentation pipeline. The manual delineation of individual muscles is initially performed for a few axial slices of each baseline data set (step 1). The corresponding masks are then transversally propagated to the whole 3D region of interest (step 2). Subsequently, a 3D nonlinear registration step is performed between baseline and follow‐up data sets so that a longitudinal propagation of the baseline 3D segmentations is possible (step 3).

To date, no automatic approach has been proposed to facilitate the exploration of lower limbs MR images, to the point of limiting clinical research on large populations. Our proposed methods of segmentation have been directly applied in several clinical studies in order to characterize different neuromuscular diseases via the extraction of scores from quantitative MRI. See the dedicated page for these research projects.

The segmentation protocol associated with our methodology has also been shown to be usable by a user who is not necessarily an expert in the field of image segmentation. A dedicated plugin has been implemented in the FSLeyes software to facilitate the distribution of our approaches to all researchers/clinicians.

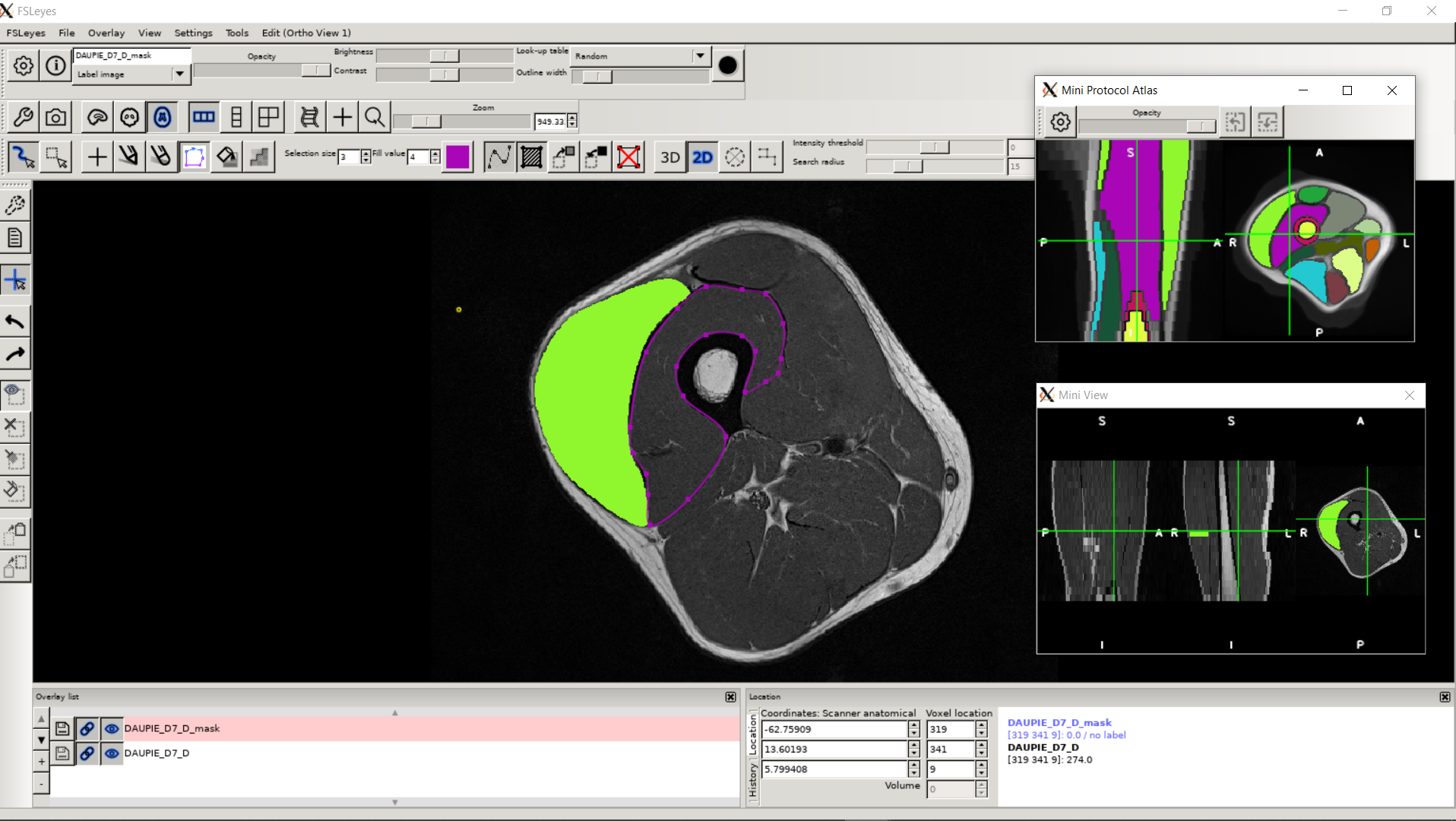

Interface of the plugin developed within the FSLeyes software. The manual segmentation of a muscle can be done, among other things, by positioning points defining a polygon on the anatomical image. The mini-views on the right allow to visualize the atlas chosen for the segmentation protocol and the current progress on the subject according to the three main anotomic planes.
